Hot dipped galvanized wire Low carbon steel wire
Standard: ASTMA411
Wire diameter: 0.2mm–3.5mm
Tensile strength: 350–550N/MM2 (soft)
Zinc coating: 35–290g/m2, WITH PERFECT anti corrosion zinc layer.

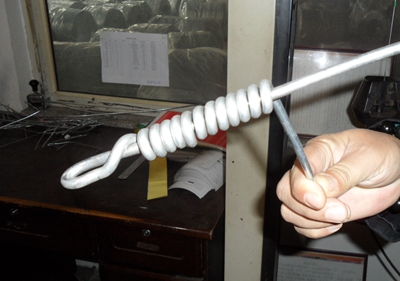

The zinc layer adhesion test, to keep the the zinc layer firm, during the test, without cracking and flaking on the zinc layer surface. we are always offer you the qualified products, when you weaving wire mesh , you don’t worry about the zinc layer can be peeled off.

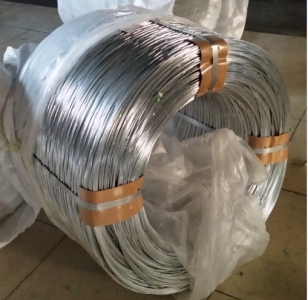

Packing: 1kg/coil–800kg/coil can be available.
| size（mm） | coil size （inch） | spool packing | big coil packing,max: 1000kg | |
| ID（mm） | OD （mm） | |||
| 0.15—0.26 | 6 “ | 1—14㎏ axis | ||
| 0.27—0.60 | 8 “ | 1—100㎏ axis | ||
| 0.61—1.60 | 12”、14”、16 “ | 1—100㎏ axis | 250-400 | 400-770 |
| 1.61—6.00 | 450508 | 800840 | ||
STANDARD: BS4565 ASTMA641 JISG3547 KSD7011,
We strictly comply with the standards during the production procedures
to meet up your request on the quality.
MATERIAL: 55# 60# 65# 70# 72A 80# 77B 82B
SIZES: 0.8–6.0MM
Tensile strength: 1000-1870MPA
Zinc coating: 100–600g/m2
PACKING: SPOOL Z2 Z3
STANDARD: GBT15393
You can get galvanized wire as following:
Wire diameter: BWG8—BWG22, usually used for binding. BWG23-34 can be available,
Tensile strength: 350–550N/MM2
Our galvanized binding wire is SOFT, SOFT ENOUGH to bind at construction site,
You Ideal choice to choose ours.
Zinc coating: 8-12g/m2, Good quality to anti rust
Elongation rate: 10%–25%
Packing: 0.3kg/coil–0.5kg/roll, 1kg/coil, 2kg/coil, 5kg/coil, 7kg/coil, 8kg/coil,
10kg/coil, 47kg/coil, 5kg/coil, 100kg/coil, 500kg/coil, 800kg/coil or as your request.
Variety of package choices for you to choose. meet up any of your request on package.
