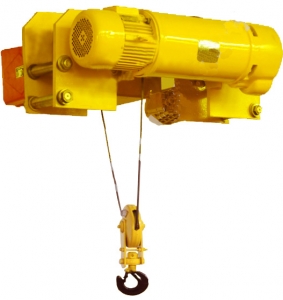

Low headroom Electric Hoist (chinese style) Introduction:
Light weight for itself, working class is high
Safe,reliable,and low malfunction.
Low working noise,extra overhead,superior braking force.
It is stable that no fall off out chain wheel during working.
The structure is tighness and lifting higher than others.
Low headroom Electric Hoist (chinese style) Parameters:
| Model | |||||||||
| Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | |||
| Lifting Height(m) | 6 | 9 | 12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | |
| Lifting Speed(m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 | |||
| Runing Speed(m/min) | 20(30) | ||||||||
| Wire rope Type | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6-37-13-170 | 6-37-15-200 | 6-37-15-200 | |||
| I Beam Tack Type | 16-28b | 16-28B | 20A-32C | 20A-32C | 25A-63C | 28A-63C | |||
| Loop Track Minimum Radius(m) | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |||
| Lifting Motor | Model |
ZD1 12-4 ZDS1 0.2/1.5 |
ZD1 12-4 ZDS1 0.2/1.5 |
ZD1 22-4 ZDS1 0.2/1.5 |
ZD1 31-4 ZDS1 0.4/3 |
ZD1 32-4 ZDS1 0.4/4.5 |
ZD1 51-4 ZDS1 1.5/1.3 |
||
| Capacity(Kw) | 0.8 0.2/0.8 | 1.5 0.2/0.8 | 3 0.4/3 | 4.5 0.4/4.5 | |||||
| R.P.M(R/min) | 1380 |
1380 3P |
1380 380V |
1380 50HZ |
1400 | 1400 | |||
| Running Motor | Model | ZDY1 11-4 | ZDY1 11-4 | ZDY1 12-4 | ZDY1 12-4 | ZDY1 121-4 | ZDY121-4 | ||
| Capacity(Kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | |||
| R.P.M(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |||
| 3P | 380V | 50HZ | |||||||
