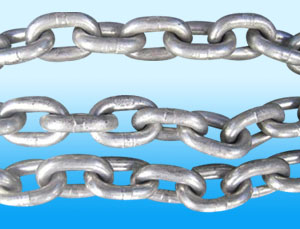

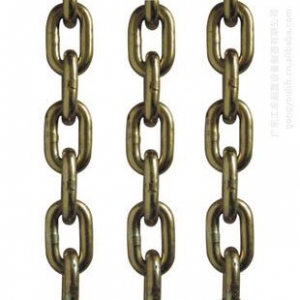

DIN 766 Link Chain
Description

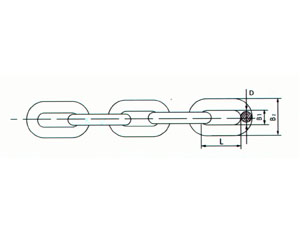

尺寸D
SIZE
内长L
INSIDE LENGTH


内宽B1
INSIDE
WIDTH
外宽B2
OUTSIDE
WIDTH
长度/11环
LENGTH PER 11 LINKS


KG/米
WEIGHT PER M
MM
±MM
MM
+MM
-MM
MM
MM
MM
+MM
-MM
KG
2
0.2
12
0.2
0.2
3.5
7.5
132
1.0
0.5
0.07
3
0.2
16
0.2
0.2
4.2
11
176
1.4
0.7
0.16
4
0.2
16
0.3
0.2
5
13.7
176
2.1
1.1
0.32
5
0.2
18.5
0.4
0.2
6
17
203.5
2.4
1.2
0.5
6
0.2
18.5
0.4
0.2
7.2
20.2
203.5
2.4
1.2
0.8
7
0.3
22
0.4
0.2
8.4
23.8
242
3.0
1.4
1.1
8
0.3
24
.04
0.2
9.6
27.2
264
3.2
1.5
1.4
9
0.4
27
0.5
0.3
10.8
30.6
297
3.6
1.8
1.8
10
0.4
28
0.5
0.3
12
34
308
3.7
1.9
2.2
11
0.4
31
0.58
0.3
13.2
37.4
341
4.0
2.0
2.7
12
0.3
36
0.6
0.3
14.4
40.8
396
4.4
2.2
3.10
13
0.5
36
0.6
0.3
15.6
44.2
396
4.6
2.4
3.8
14
0.6
41
0.7
0.4
16.8
47.6
451
5.4
2.7
4.4
16
0.6
45
0.8
0.4
19.2
54.4
495
6.0
3.0
5.7
18
0.9
50
0.8
0.4
21.6
61.2
550
6.6
3.3
7.3
19
0.4
53
0.9
0.4
22.8
64.6
583
7.0
3.7
7.97
20
1.0
56
1.0
0.5
24.0
68.0
616
7.4
3.7
9.0
22
1.2
62
1.1
0.5
26.4
75.0
682
8.0
4.0
11.0
23
1.2
64
1.1
0.5
27.6
78.2
704
8.4
4.2
12
26
1.3
73
1.2
0.6
31.2
88.4
803
9.6
4.8
15
