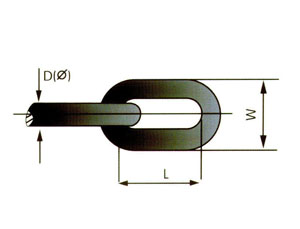

链环尺寸LINK SPECIFICATION
|
拉力负荷
PROOF LOAD |
破断负荷
BREAKING LOAD |
KG/200英尺
NET WT PER 200FT(KG) |
||||
|
链径D
DIAMETER |
内长L
INSIDE LENGTH |
外宽W
OUTSIDE WIDTH |
|||||
|
INCH
|
MM
|
MM
|
MM
|
KG
|
KG
|
B.F.(黑漆）
|
H.D.G(热镀锌）
|
|
1/8
|
3.20
|
23
|
12
|
200
|
400
|
10.4
|
10.7
|
|
5/32
|
4.00
|
27
|
15
|
300
|
600
|
16.6
|
17.5
|
|
3/16
|
4.70
|
31
|
17
|
400
|
800
|
22.4
|
23.3
|
|
7/32
|
5.50
|
32
|
19
|
550
|
1100
|
32.0
|
33.0
|
|
1/4
|
6.35
|
33
|
21
|
750
|
1500
|
43.5
|
44.8
|
|
5/16
|
7.94
|
48
|
31
|
1200
|
2400
|
68.0
|
70.0
|
|
3/8
|
9.50
|
60
|
37
|
1700
|
3400
|
96.0
|
99.0
|
|
7/16
|
11.11
|
71
|
41
|
2300
|
4600
|
126.0
|
129.0
|
|
1/2
|
12.70
|
85
|
48.5
|
3000
|
6000
|
167.0
|
172.0
|
|
5/8
|
15.80
|
114
|
61.5
|
4700
|
9400
|
256.0
|
264.0
|
|
3/4
|
19.00
|
125
|
75
|
6800
|
13600
|
381.0
|
392.0
|
|
7/8
|
22.20
|
140
|
88
|
9250
|
18500
|
527.0
|
543.0
|
|
1
|
25.40
|
155
|
100
|
12150
|
24300
|
696.0
|
716.0
|
